door Profile styles





Outside Edge Profiles

OP 30 Cove Edge

OP 31 Beaded Edge

OP 35 Corner Round

OP 40 Ogee Edge

OP 34 Chamfer

OP 33 Crown Edge

OP 39 Straight Taper

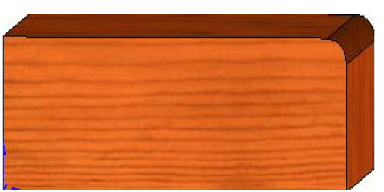

OP#41Round Corner 1/8”R



OP#44 Half Shoulder 2

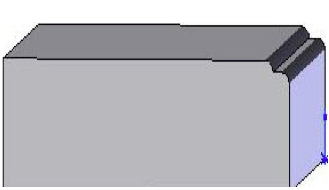

OP#45 Doble Bead












Inside Profiles

IP 10 Ogee

IP 13 Bead

IP 12 Chamfer

IP 11 T&G Shaker

IP 14 T&G Chamfer

IP 16 T&G Step

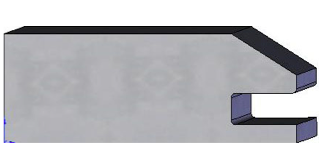

IP12-A Chamfer no lip

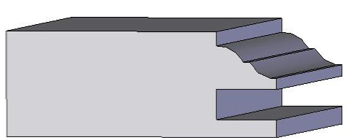

IP#18 Cove & Bead

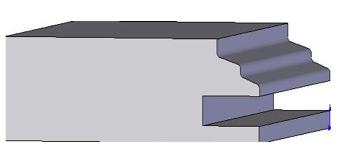

IP#19 3 Steps

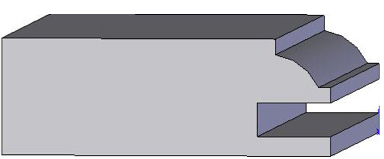

IP#33 Crown








Panel Profiles

PP 20 Cove

PP 22 Ogee

PP 23 Taper

PP 24 Bubble

PP 25 Rev. Panel

PP 26 V Grooves

PP 27 Beaded Panel

_” RP Cove Under Cut

_” RP Ogee Under Cut

_” RP Straight Taper U. Cut

_” Bubble RP Under Cut



3 Steps RP








Mitre Profiles

Mitre Door 3” Victoria Rail

Mitre Drawer 1-3/4” Victoria Rail

Mitre Double Beads 2-3/8” Rail

Mitre Bubble Rail 2-1/4”

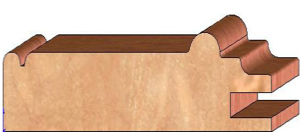

MS 438 Miter 3-1/4”
